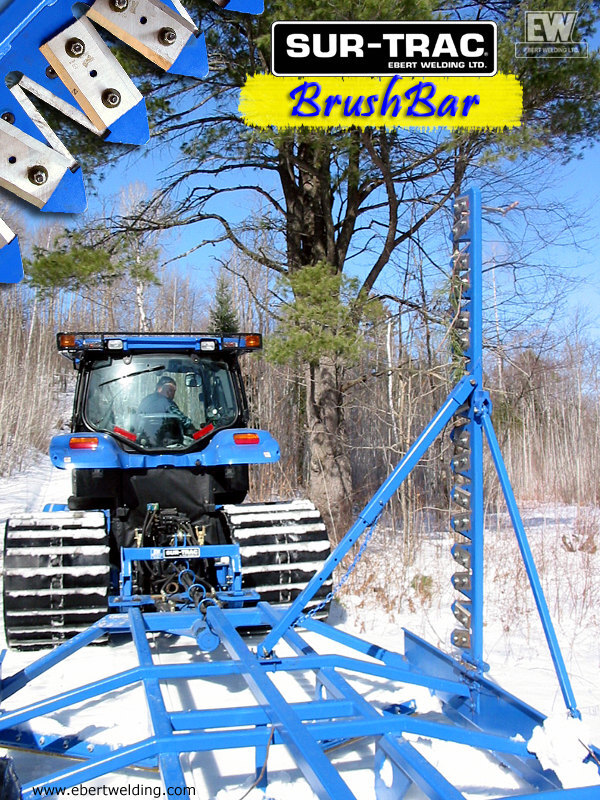

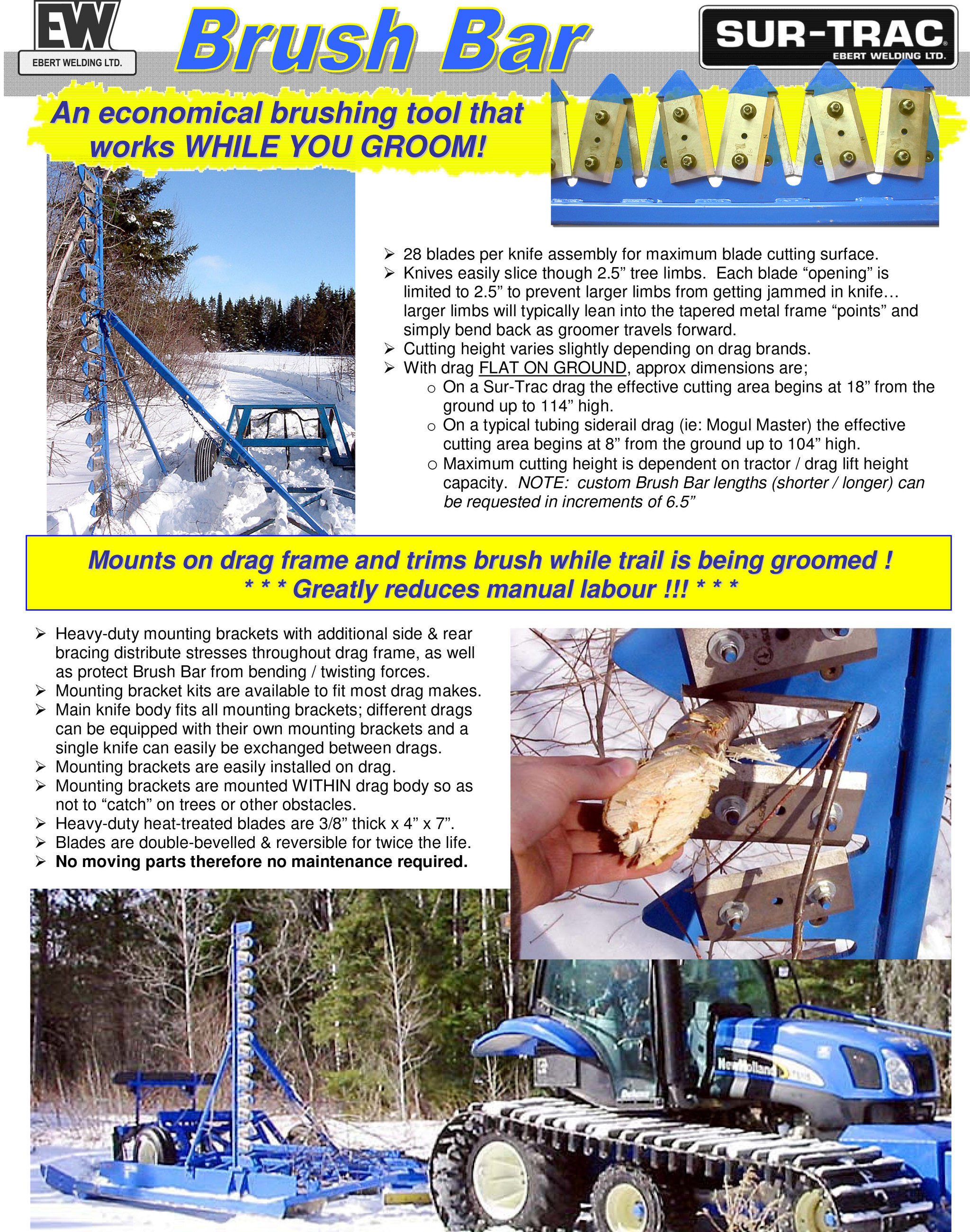

An economical brushing tool that works while you groom!

28 blades per knife assembly for maximum blade cutting surface. Knives easily slice though 2.5” tree limbs. Each blade “opening” is limited to 2.5” to prevent larger limbs from getting jammed in knife... larger limbs will typically lean into the tapered metal frame “points” and simply bend back as groomer travels forward.

Cutting height varies slightly depending on drag brands. With drag FLAT ON GROUND, approx dimensions are;

o On a Sur-Trac drag the effective cutting area begins at 18” from the ground up to 114” high.

o On a typical tubing siderail drag (ie: Mogul Master) the effective cutting area begins at 8” from the ground up to 104” high.

o Maximum cutting height is dependent on tractor / drag lift height capacity. NOTE: custom Brush Bar lengths (shorter / longer) can be requested in increments of 6.5”

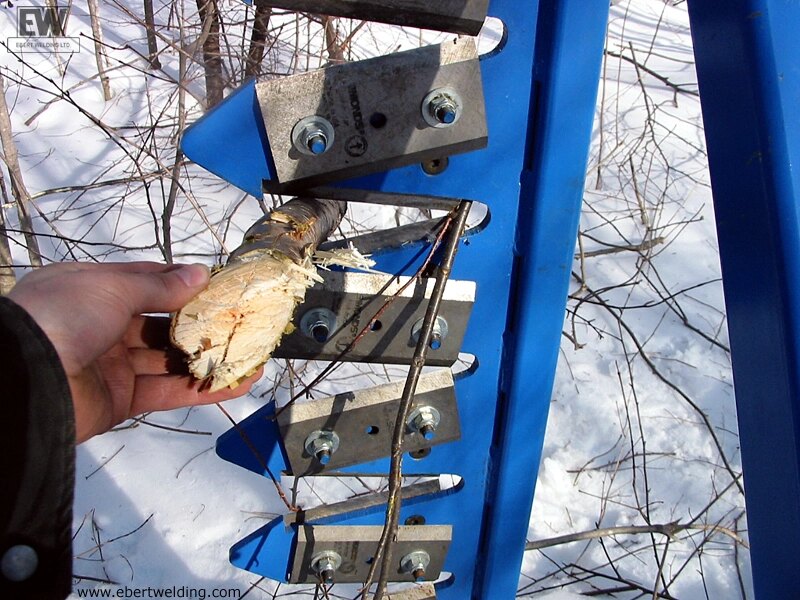

 EW Brushbar IMG 6437

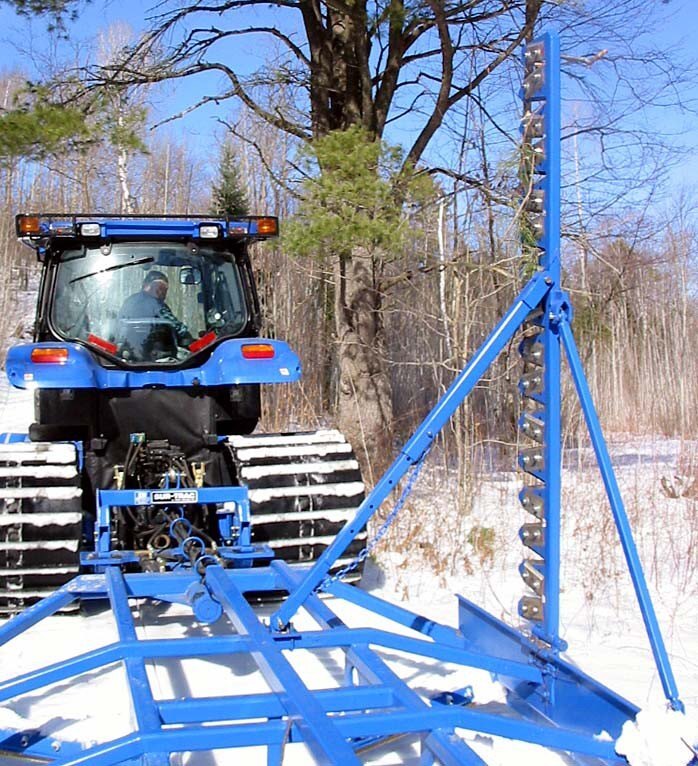

72f552 A2afdcfaeb3801f8b162549107385f21

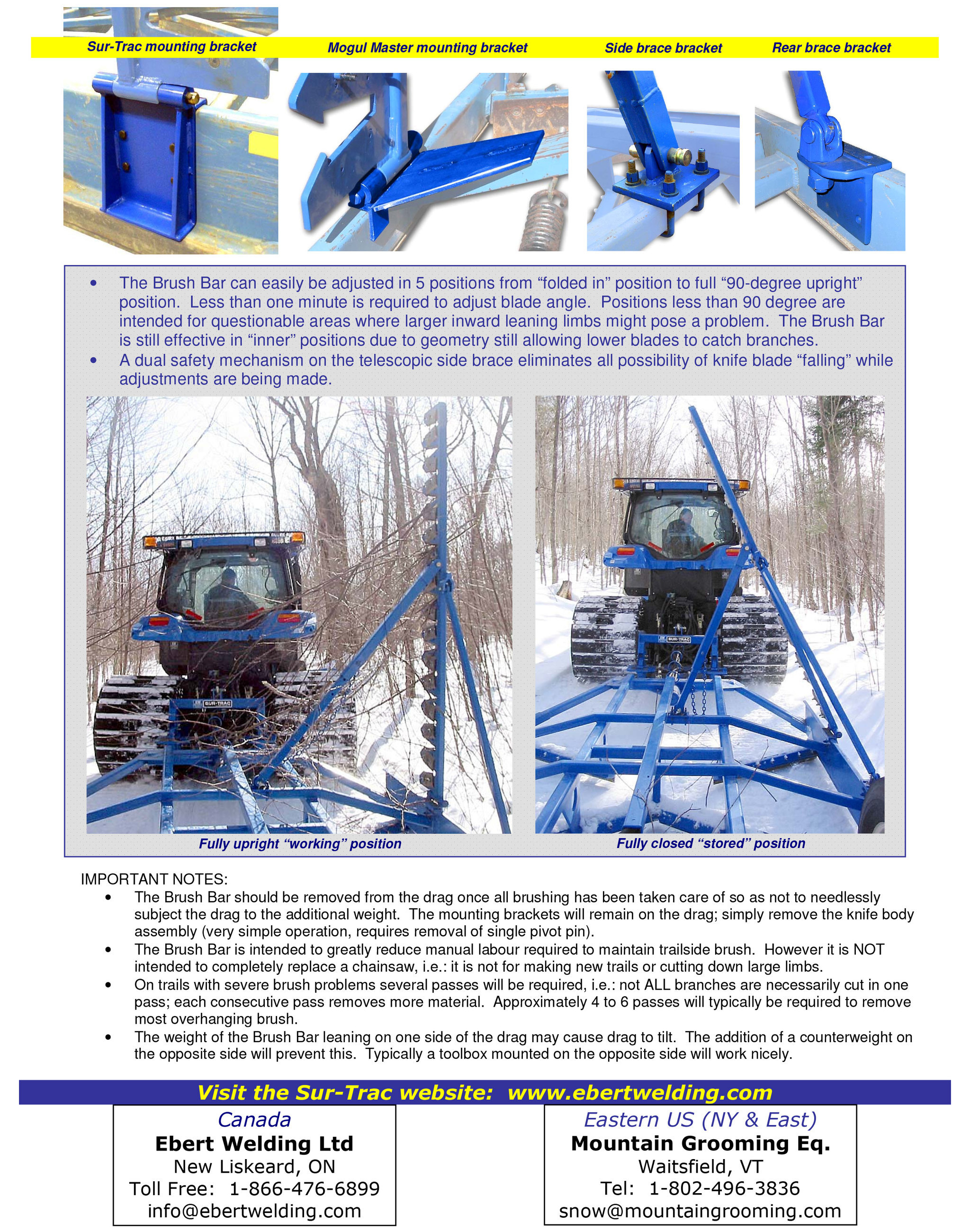

Heavy-duty mounting brackets with additional side & rear bracing distribute stresses throughout drag frame, as well as protect Brush Bar from bending/twisting forces.

  • o  Mounting bracket kits are available to fit most drag makes.
  • o  Main knife body fits all mounting brackets; different drags
  • o  can be equipped with their own mounting brackets and a
  •      single knife can easily be exchanged between drags.
  • o  Mounting brackets are easily installed on drag.
  • o  Mounting brackets are mounted WITHIN drag body so as
  •     not to “catch” on trees or other obstacles.

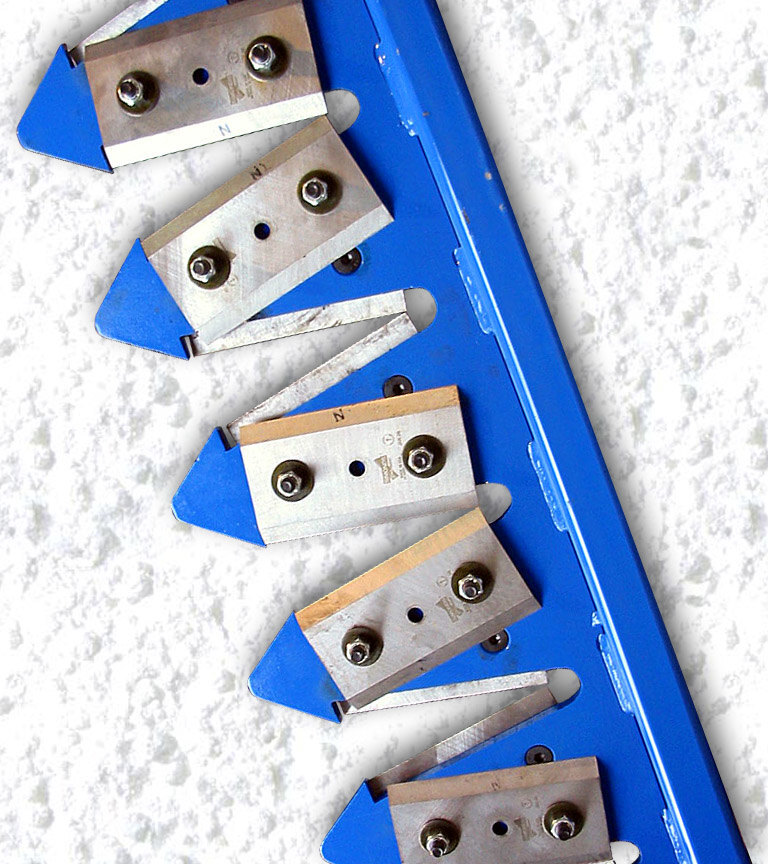

  • o  Heavy-duty heat-treated blades are 3/8” thick x 4” x 7”.
  • o  Blades are double-bevelled & reversible for twice the life.

No moving parts therefore no maintenance required.

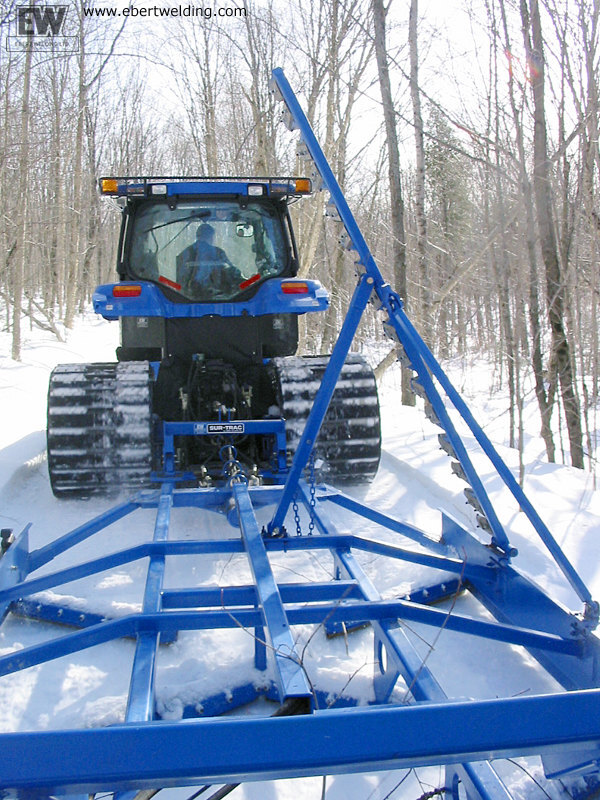

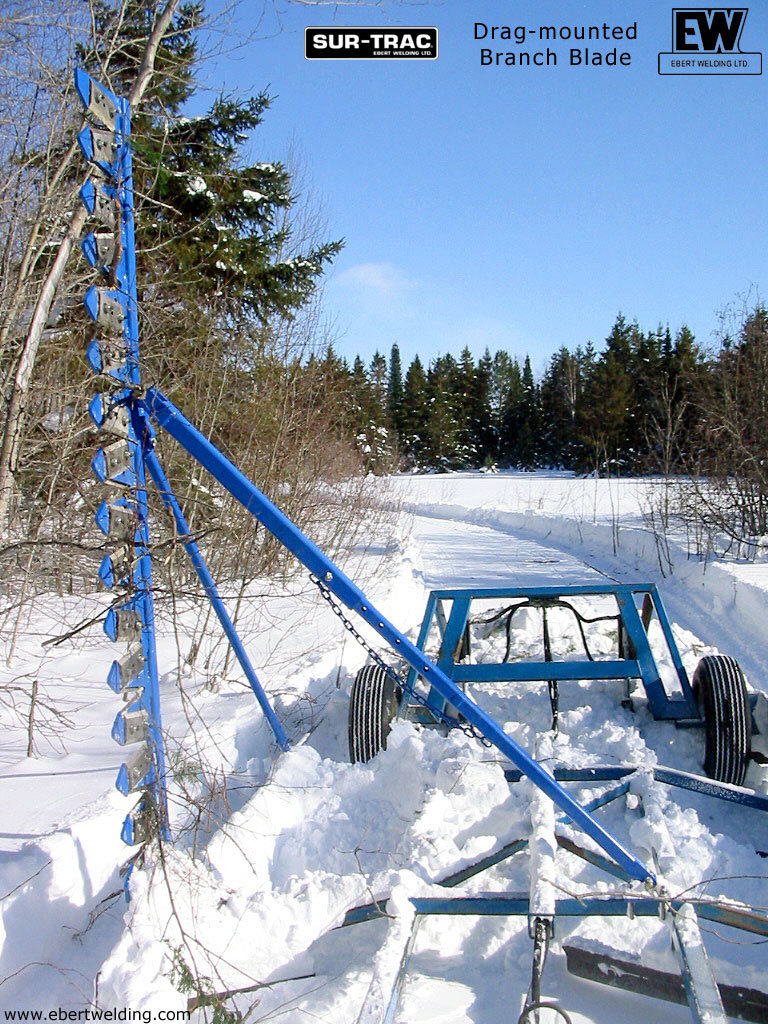

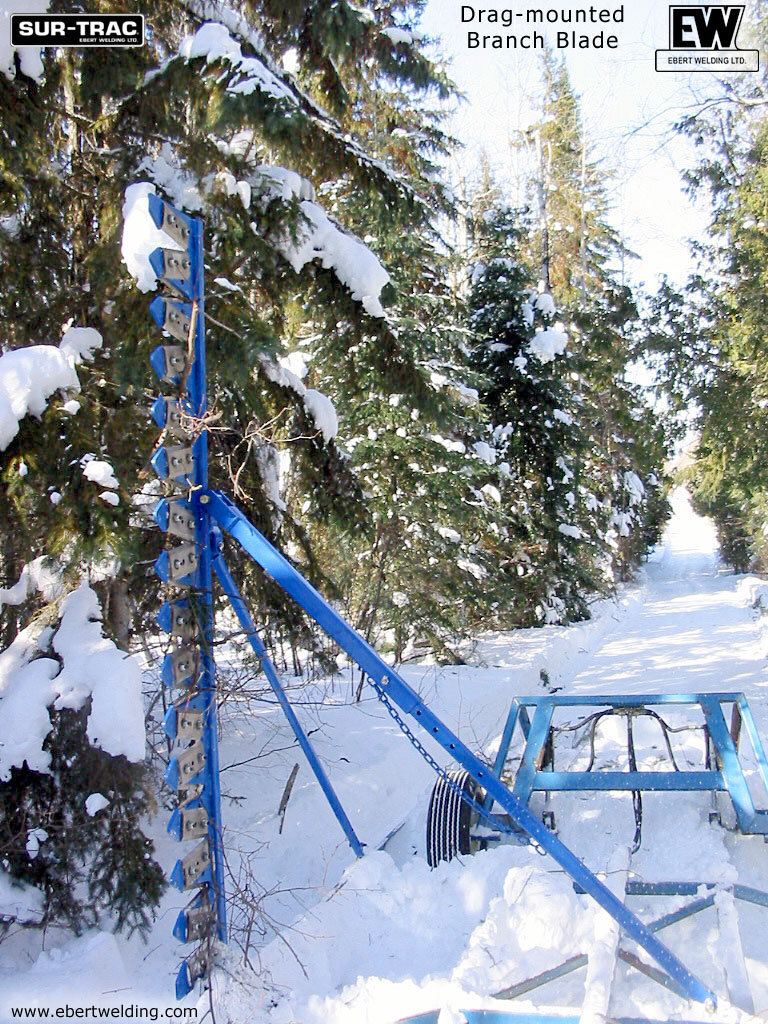

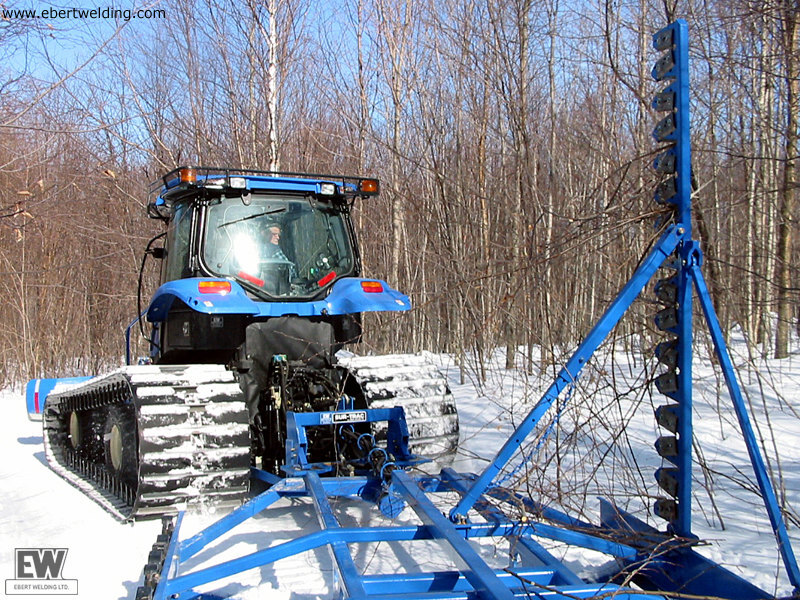

Mounts on drag frame and trims brush while trail is being groomed !

* * * Greatly reduces manual labour !
