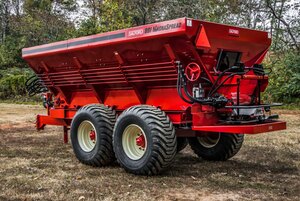

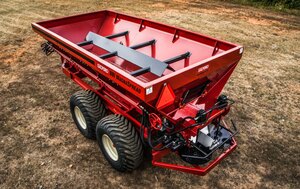

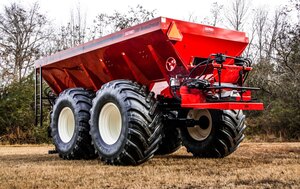

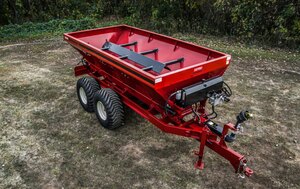

Salford MAGNASPREAD SPINNER SPREADER

Name: Salford MAGNASPREAD SPINNER SPREADER
Brand: Salford
Availability: OutOfStock

Call for Price

Hydraulic Pull-type Fertilizer/Lime Spreader. Precision, power, performance. Spreads lime at up to 2 tons per acre at 14 mph with a 60-foot swath. Spreads fertilizer in 80-foot-plus swaths. Optimized for a variety of high-capacity farming applications. Equipped with Salford BBI’s Binary Manifold, making connections to your precision agriculture electronics a snap.

Specifications

Model

MAGNASPREAD SPINNER SPREADER

Category Name

Agriculture

Year

2025

Sale Type

New

Manufacturer

Salford

features

MAGNASPREAD STANDARD FEATURES

• Hydraulic Binary Manifold with pilot operated relief, manual flow controls for spinner and conveyor
• High duty-cycle hydraulics, with oil cooler, GR valve
• Series 6 CV joint PTO shaft
• Overhead mounted spinner motors
• Tandem conveyor drive gearbox
• Stainless steel spinners, fins and spread shield
• 16′ Stainless steel hopper with access ladder
• Over-slung center ‘V’
• 30″ Belt-Over-Bar Chain Conveyor
• 14-Ton walking beam suspension with 21.5 x 16.1-14 ply tires
• Heavy-duty tongue jack
• Spreader pan test kit

BINARY MANIFOLD

Patented hydraulics control system – connectivity to all major precision agriculture technology brands

Variable Rate ready ISOBUS compatibility to most major precision control systems
Multiple factory-installed systems available

HYDRAULIC FEATURES & OPTIONS

High quality JIC fittings & true hydraulic pipe
GR Valve – increasing chain speed
Hy-Torque manifold – increasing available spinner torque

product specs

Series	BBI
Size	320 cu-ft, 352 cu-ft
Product type	Pull Type Spinner Spreaders
Model Name Short	MagnaSpread
Model Name Long	MagnaSpread 16' tandem axle spreader

materials spread

Fertilizer	YES
AG Lime	YES
Litter	NO
Organics	NO
Seed	No
Other	-
Number of products applied, including optional hopper compartments	1

detailed equipment specifications

Paint	Standard Paint Color – Red Optional Paint Color – Green Optional Paint Color – Gray Optional Paint Color – Black Accent Parts (304 SS)
Hitch	Standard: Cat 4 Cast Hitch – Large Size – 106,000 lb Draft Load (Pintle, Clevis and Hitch Bracket AND Heavy Duty Jack) Optional: Articulating Hitch
Jack	Heavy-duty tongue jack
Tarp	Standard: No Tarp Option: Tarp for hopper with aluminum end caps Option: Tarp for hopper with stainless steel end caps
Tail Light	Standard
Height	-
Weight	-

hopper

Hopper Size	Standard: 16′ STANDARD HOPPER 320 cu-ft Optional: 16′ HIGH HOPPER 352 cu-ft
Hopper Material	Standard: 409 Stainless Steel, Painted Optional: 304 Stainless Steel
Hopper Extensions	Standard: No Extension Brackets Optional: Extension Brackets for 6″ boards
Hopper Gate Control	Jack Operated Gate
Hopper Ladder	Standard
Hopper "Inverted V"	Standard: Removeable Invertered V * The Inverted V running along the length of the hopper help prevent material from bridging in the hopper.
Hopper Sight Window	Standard Sight Window

metering and drive

PTO Drive	Choice: 1000 RPM Series 6 CV 1 3/4 20 Spline Choice: 1000 RPM Series 6 CV 1 3/8 21 Spline Choice: Tractor Supplied Hydraulics for MagnaSpread* *Requires 50 GPM total with max pressure of 2800 PSI. 2 Remotes, 1 at 30 GPM with a 3rd line case drain for Spinners and 1 at 20 GPM for the Conveyor. This hydraulic configuration (does not) include an oil cooler and one cannot be added. Use of 1/2″ coupler on spinner circuit will likely result in reduced performance in heavy applications such as lime.
Material Distribution Booms/Spinners/Air Line	24″ dished spinner design for precision coverage Stainless steel spinners, fins and spread shield
Application Swath Width	Lime: Up to 60 feet Fert: Up to 80 feet
Material Distribution Drive	Standard: Self Contained PTO Hydraulics Optional: Plug to Tractor Hydraulics
Metering Drive	Tandem conveyor drive gearbox Optional: High Speed Conveyor Valve
Primary Metering	Standard: 30″ Belt-Over-Bar Chain Optional: 20″ Stainless Steel Mesh Chain
Primary Metering Minimum Output Rate	-
Primary Metering Maximum Output Rate	-
Secondary Metering	N/A
Secondary Metering Minimum Output Rate	-
Secondary Metering Maximum Output Rate	-
Material Banding or Section Control	N/A
