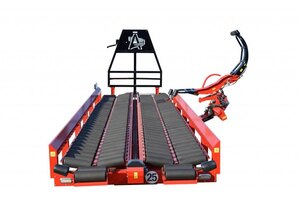

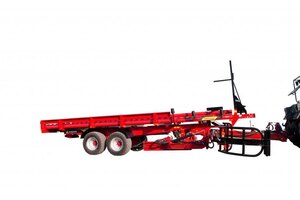

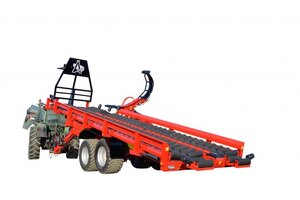

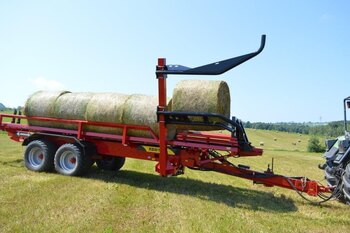

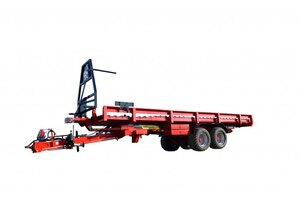

The Anderson Group is proud to introduce the world’s first self-loading bale carrier capable of handling efficiently wrapped silage bales. |
Round bale diameter | Up to 5 ft (1,5 m) |
Bale type | Baleage/dry hay/straw/ Wrapped bale (min. 6 layers of film) |
Width – A | 8 ft 4 in (2,55 m) |
Overall width (inlcuding loading arm) | 8 ft 4 in (2,55 m) |
Height – B | 12 ft 2 in (3.71m) |
Overall height (inlcuding loading arm) | 12 pi 6 po (3.81m) |
Bed height - E | 5 pi (1,55 m) |
Overall length – D | 38 pi 5 po (11,76 m) |
Overall weight | 14 990 lb (6800 kg) |
Empty Weight on tow bar*** | 3415 lb (1550 kg) |
Round bale 4 ft x 4 ftdiameter (1,2 m x 1,2 m) | In 2 rows = 14nIn 3 rows = 19 or 20 |
Round bale 4 ft x 5 ft diameter (1,2 m x 1,5 m) | In 2 rows = 14nIn 3 rows = 19 or 20 |
Round bale 4 ft x 6 ft diameter (1,2 m x 1,8 m) | n/a |
Round bale 5 ft x 5 ft diameter (1,5 m x 1,5 m) | In 2 rows = 12nIn 3 rows = 16 or 17 |
Loading arm lifting capacity | 2500 lb (1135 kg) |
Total weight including load | 42 000 lb (19 000 kg) |
