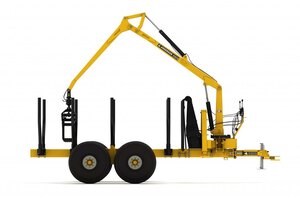

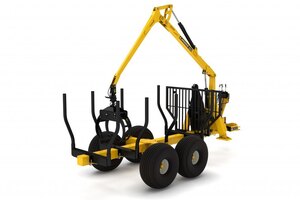

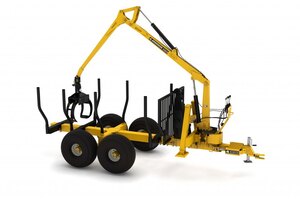

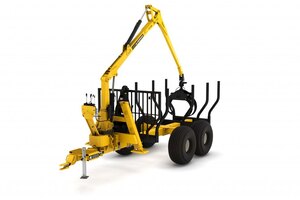

Anderson M160

Name: Anderson M160
Brand: Anderson

Call Email

Call for Price

Contact Us Get Approved Value a Trade Get Directions Get Directions Print

Overview

For producers, professional forest contractors, and owners who always demand the most from their log loader. The M-160 provides the specifications you need to handle the work without compromise and with abundant standard features that you would normally find on industrial equipment. The M-160 is really in a class by itself.

Specifications

Model

M160

Category Name

Agriculture

Year

2025

Sale Type

New

Manufacturer

Anderson

Auger

Optional – n6 in (15,2 cm) nOrn9 in (22.9 cm)

Tires

16.5L16.1 (14 PLY)

Steel Cable

150' (45.7 m);n3/8" (0.9 cm) diameter

Swing Angle

360°

13 HP Power Unit

Optional

Grapple Rotation

Continuous

Total Empty Weight

RF-612 : 4232 lb (1920 kg)nRF-612HD : 4486 lb (2035kg)

Total Load Capcity

RF-612: n20,000 lb (9072 kg) nRF-612HD: n28,440 lb (12,900 kg)

Maximum Arm Extension

16' (4.8 m)

Closed Grapple Diameter

4" (10.2 cm)

Maximum Grapple Opening

48" (121.9 cm)

Telescopic Stabilizer Legs

Optional

Boom Lift Capacity At Mid-span

2600 lb (1180 kg)

Hydraulic Articulated Drawbar

STD

Empty Weight Of The Loader Only

1620 lb (735kg)

Empty Weight Of The Trailer Only

RF-612 : 2612 lb (1185 kg)nRF-612HD : 2866 lb (1300kg)

2-speed Boom-mounted Hydraulic Winch

Optional − W4750nLoad capacity of 6500 lb (2948 kg)

Boom Lifting Capacity At Full Extension

1150 lb (521 kg)

Maximum Rotator Torque @ 2450 PSI (170 Bar)

445 lb.pi (600 N.m)

features and options

    1. Hydraulic winch #750 1 speed (6500lbs) with steel cable 150' × 3/8" diameter (45.7 m × 9 mm)
    2. Circuit control with joysticks
    3. 360 degree rotation grapple
    4. Articulated draw bar for improved maneuverability in tight areas
