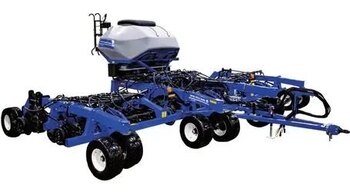

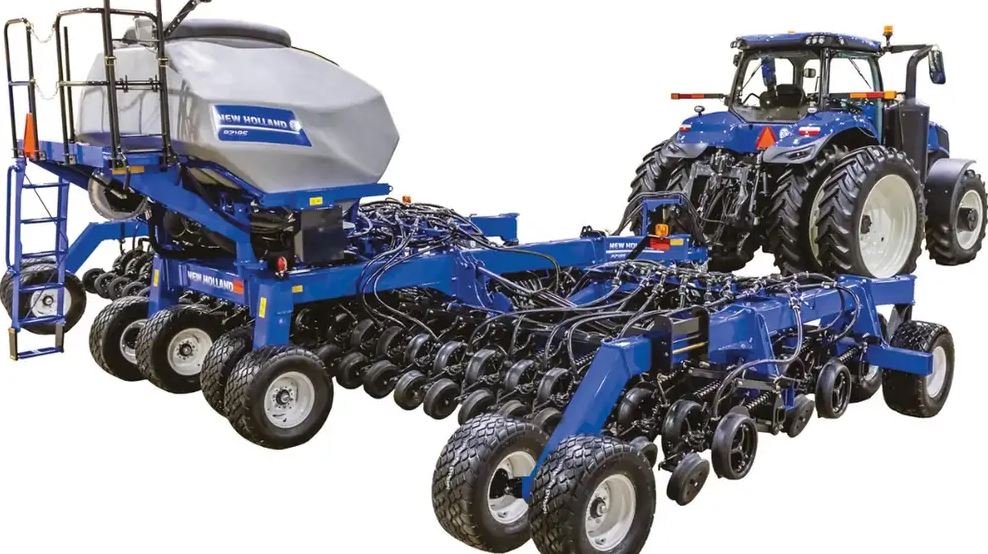

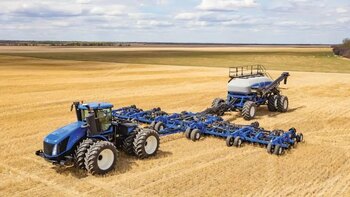

New Holland Air Disc Drills P2185 - 40 ft

PRODUCTIVE PERFORMANCE IN THE FIELD

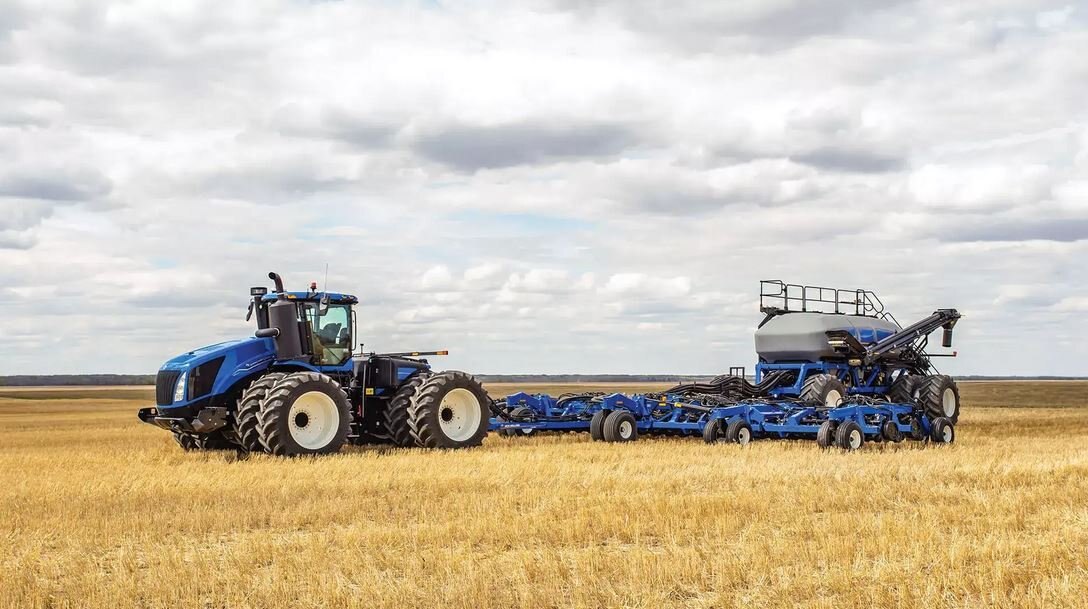

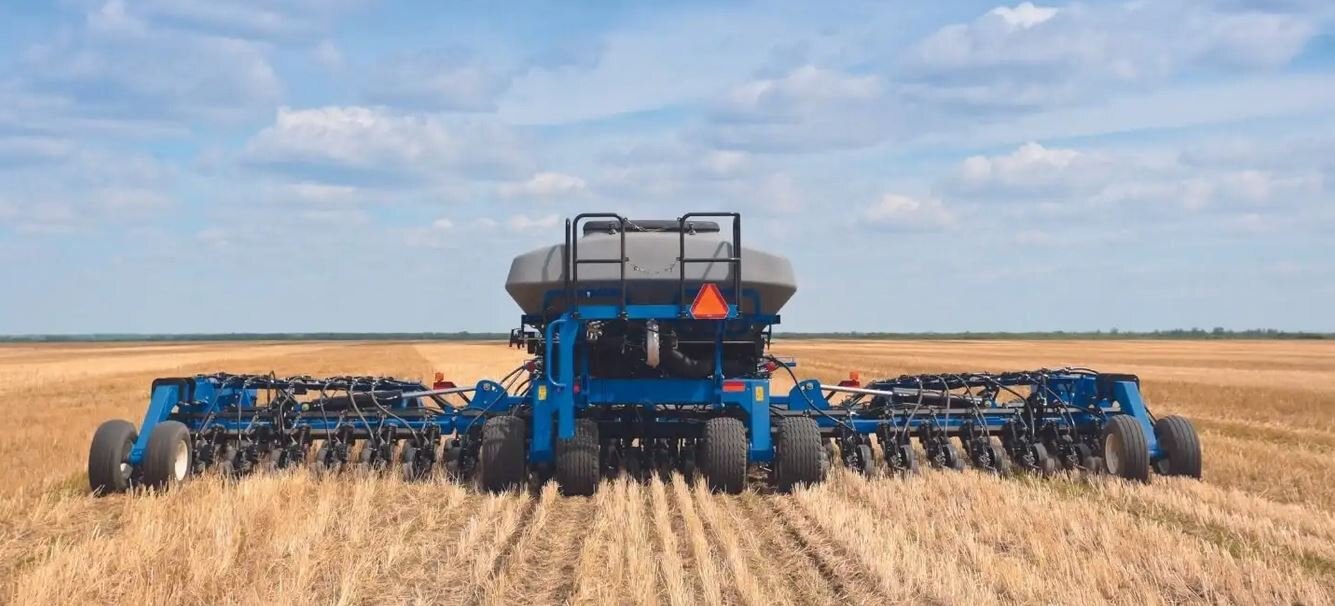

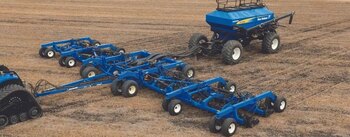

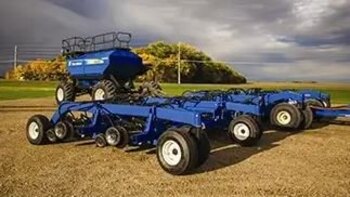

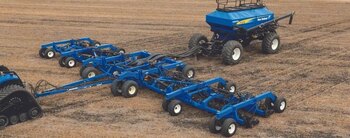

The P2185 disc drill is available in 30 and 40 ft. (9.1 and 12.2 m), with 7.5, 10 or 15 in. (19.2, 25.4, or 38.1 cm) row spacing. The new frame design offers exceptional weight distribution that is ideal for many different crops and soil types. In addition, the narrow V-shape envelope adds additional stability for safe and convenient transport to and from the field.

OPTI-ROW™

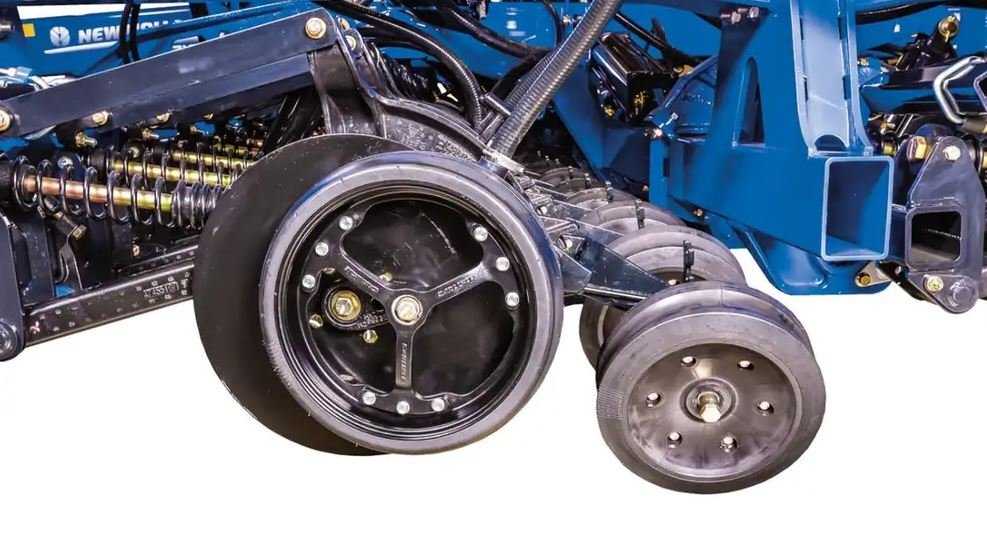

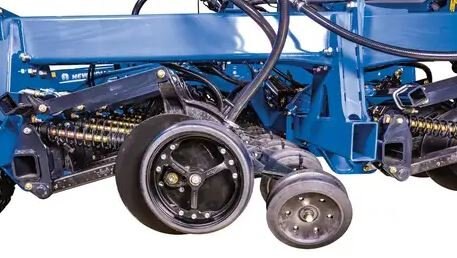

PARALLEL LINK DESIGN

Industry-leading patented parallel link design provides even seed placement at higher speeds and on rougher terrains. It ensures best-in-class emergence in a wide variety of soil, seeding depths, and field conditions. The low maintenance design allows farmers to be more efficient - spending more time where it counts, in the field.

DEPTH CONTROL

For a customer who demands high productivity, look no further than the P2185 disc drill. The true 0-3.5 in. (0-88.9 mm) depth settings accommodate all seeding depths. The single-handed adjustment without a manual lock makes the P2185 the easiest depth adjustment on the market.

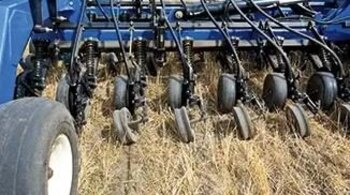

ACCURATE SEED PLACEMENT

The accurate placement of seeds is ideal for small grains such as wheat, barley, rice, soybeans and canola. The unique scraper and opener geometry allows for consistent seeding depth across the entire opener operation range. There is no need for a seed shelf, as the seed can be placed in the bottom of the trench. High mounting of the seed tube ensures reduced wear, long life, and reduced plugging over the competition. The 18 in. (457.2 mm) disc cuts cleanly through the heaviest of crop residues to ensure optimal seed-to-soil contact.

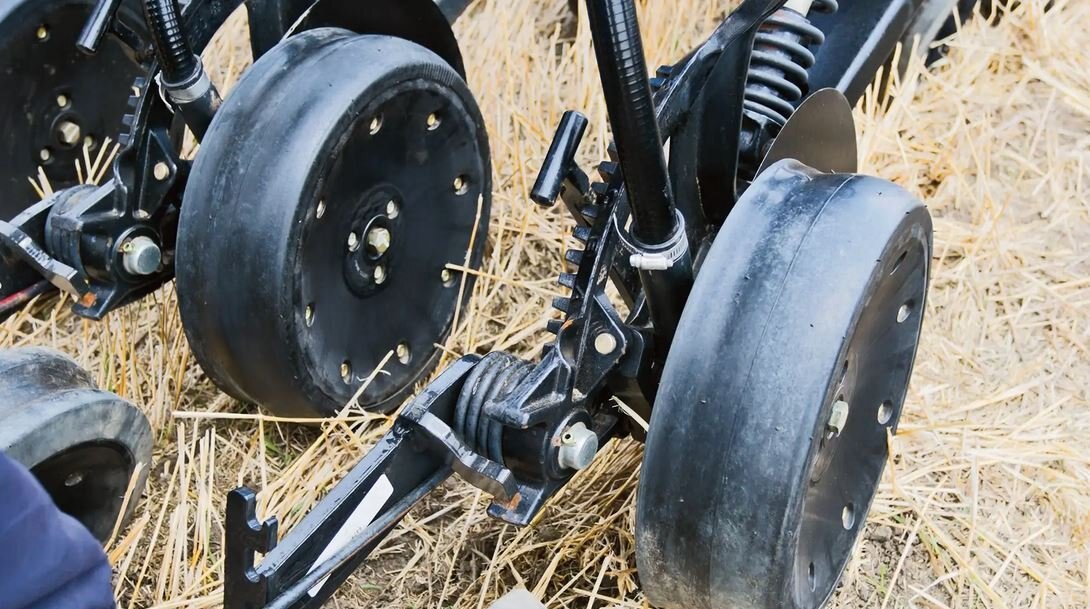

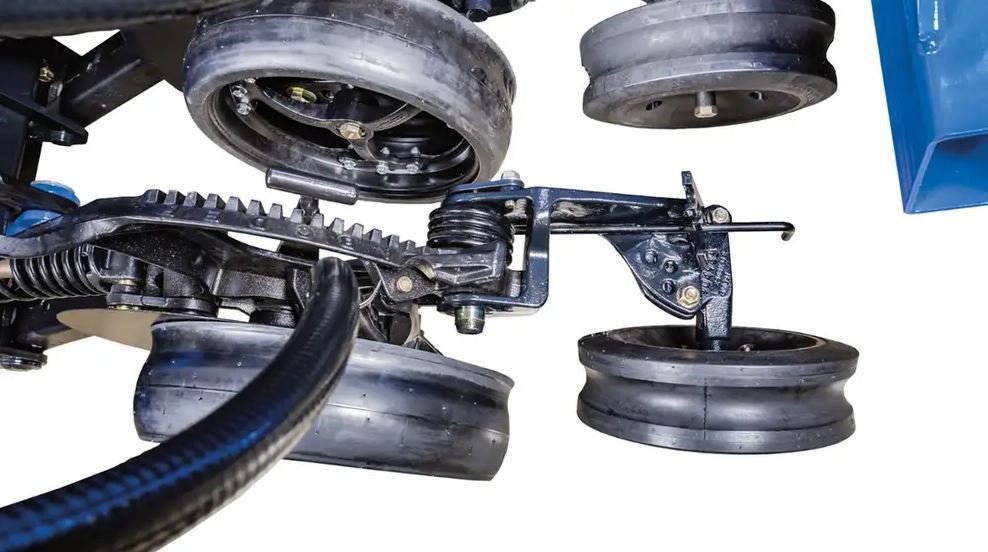

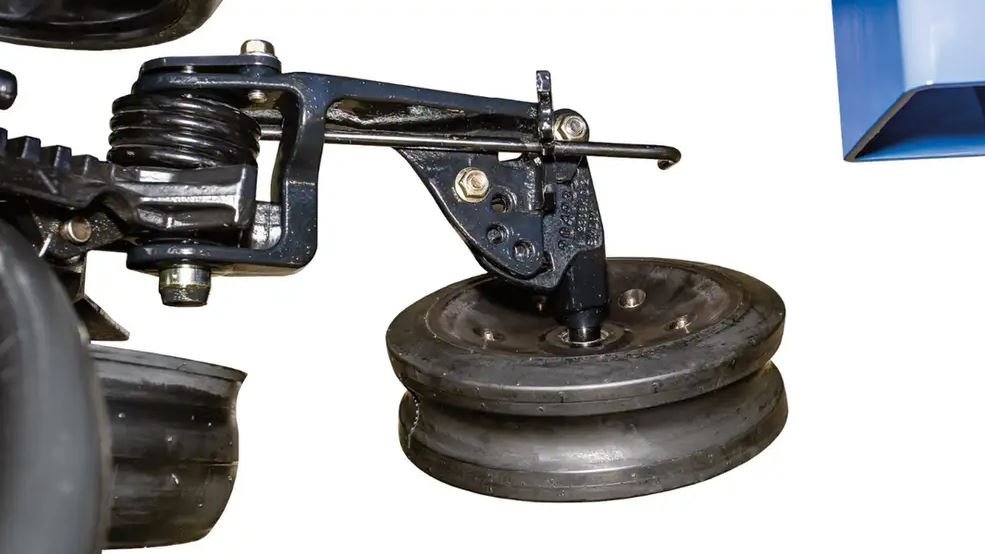

ALL-NEW CLOSING SYSTEM

The P2185 disc drill comes standard with indexable angle settings, allowing operators to set for effective seed trench closing, no matter the conditions —from conventional to no-till. The hollow center reduces compaction while providing excellent seed-to-soil contact. There is up to 100 lbs. (45.6 kg) of available pressure – with three convenient pressure settings of 60, 70 and 100 lbs. (27.2, 31.8 and 45.6 kg). It maintains a smooth field finish in the softest conditions yet can also be adjusted to properly close the seed trench in the absolute heaviest soils.

SECTIONAL CONTROL

The P2185 allows you to reduce input costs and increase yields by eliminating overlap on turn rows and odd-shaped fields. Four-section control is standard. This drill allows you to shut off drill sections with the push of a button, or automatically via GPS. It also ensures that the intended rate is applied to all portions of the field.

UNMATCHED DURABILITY COMBINED WITH REDUCED MAINTENANCE COSTS

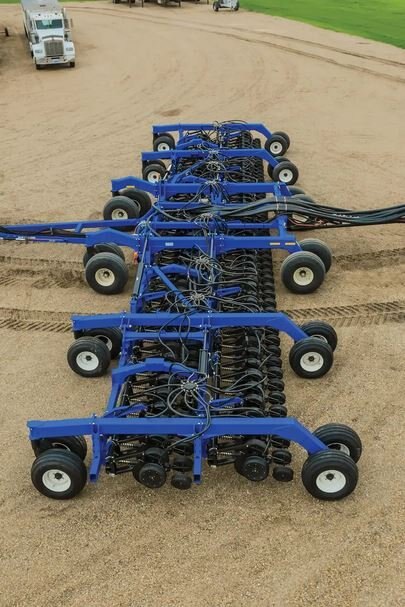

FRAME ACCESSIBILITY

Open frame design combined with larger bracing members allows for easy accessibility and maintenance across the drill. This design also allows for convenient depth adjustment on the center section of the drill frame.

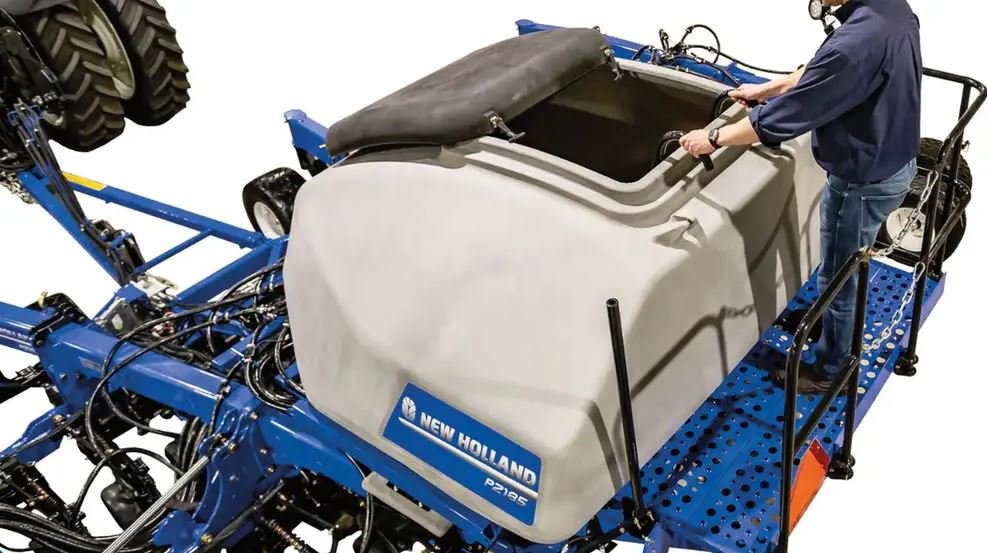

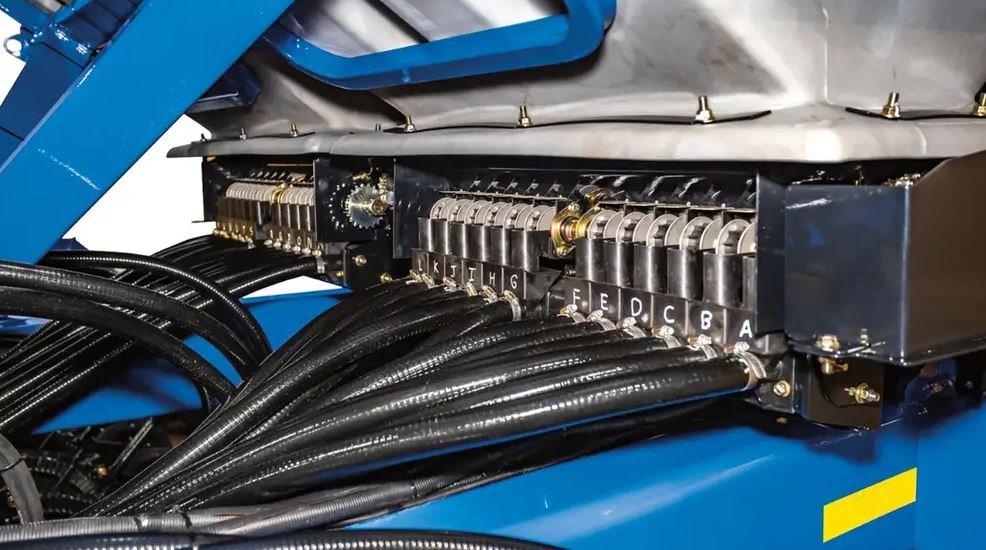

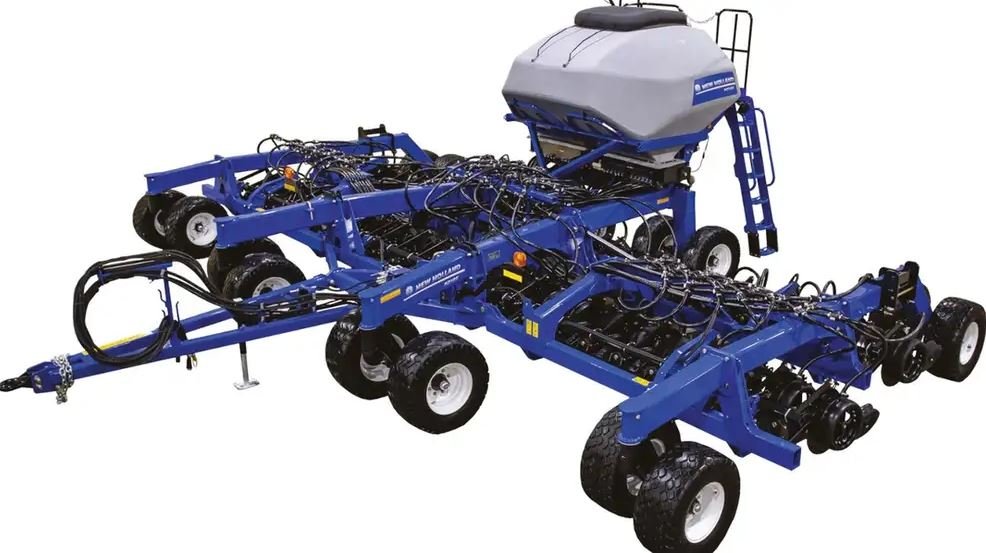

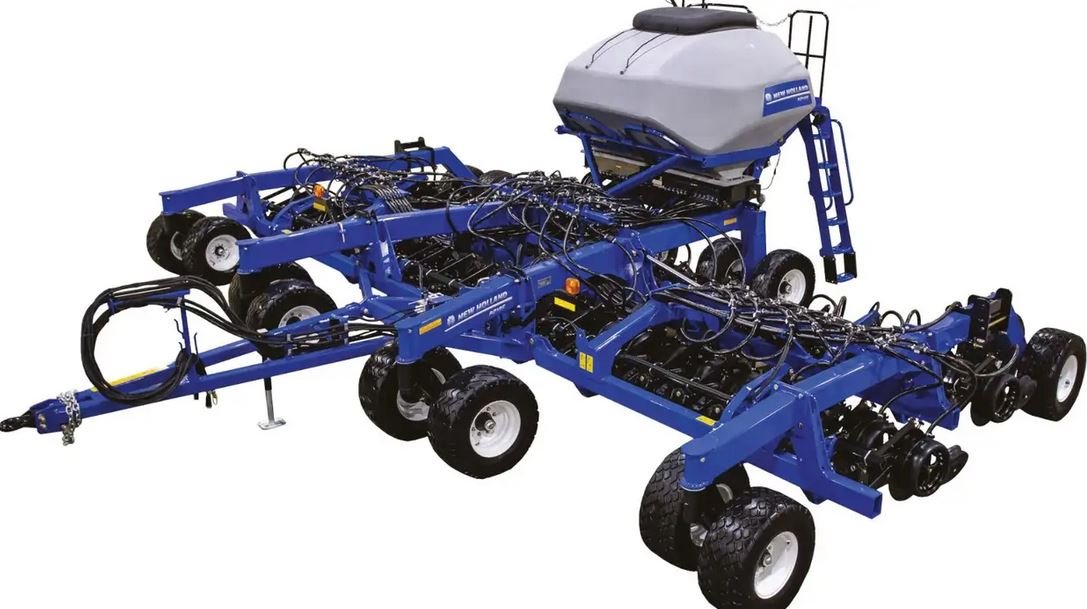

MOUNTED SEED TANK

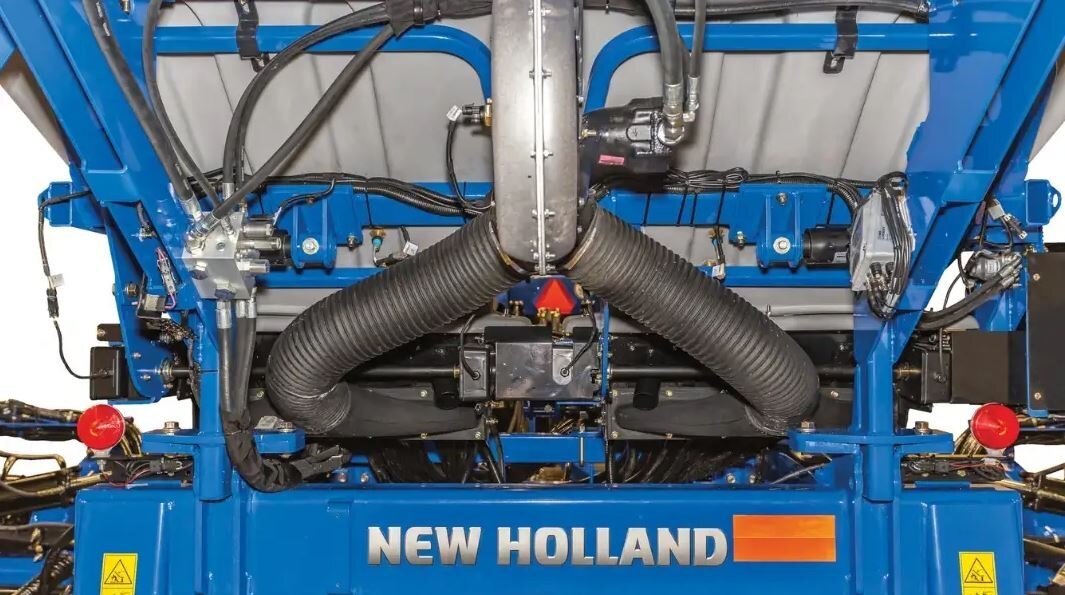

The P2185 features a mounted seed tank. It is specifically designed for easy access to metering assembly for adjusting, cleanout and servicing. It includes a non-pressurized tank, eliminating air leaks. The tank evens the weight distribution across the machine and adds maneuverability around corners while transporting equipment. A large platform with easy accessibility and a large tank opening makes loading a breeze. The 30 ft. (9.1 m) model offers a 110-bushel capacity, while the 40 ft. (12.2 m) model offers a 140-bushel capacity.
