BIG IN THE FIELD, COMPACT IN TRANSPORT

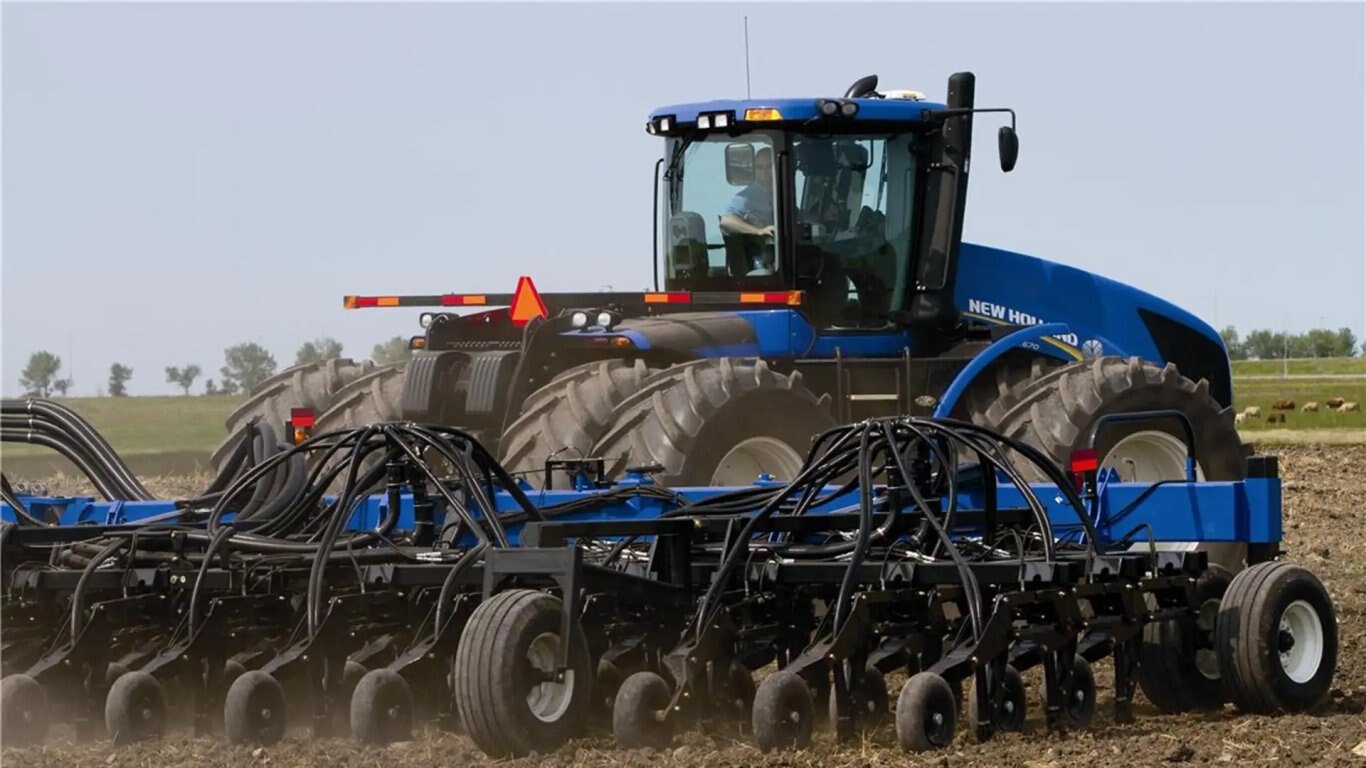

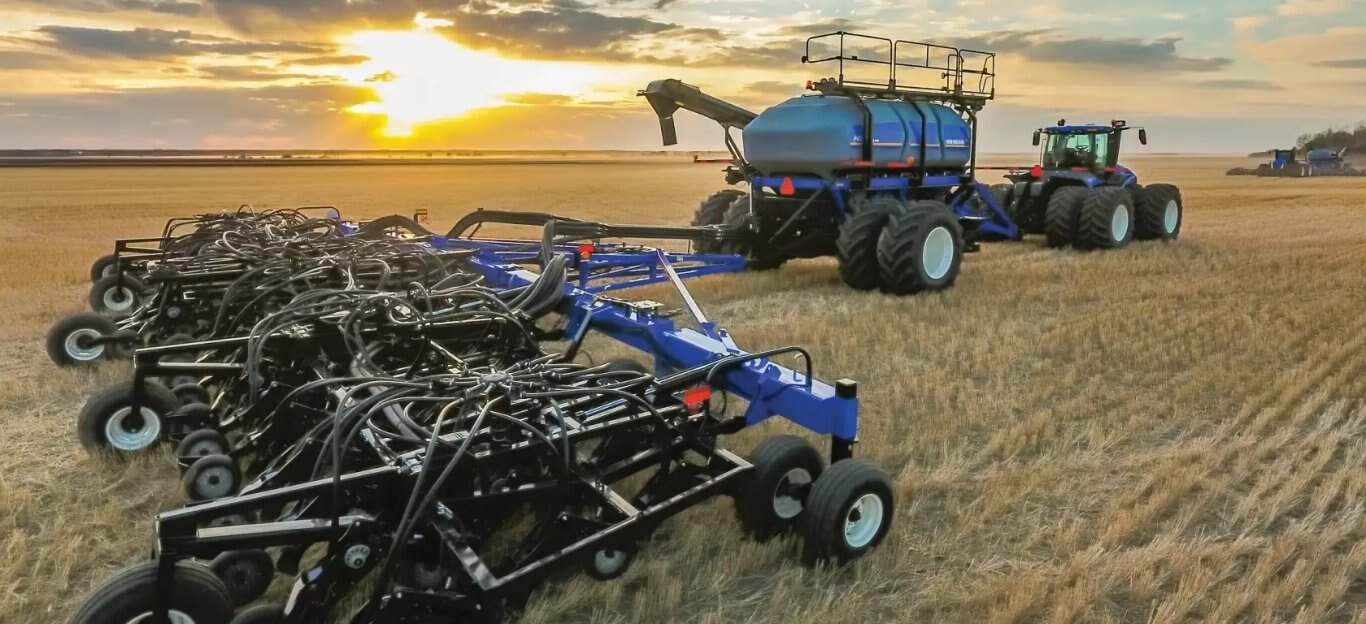

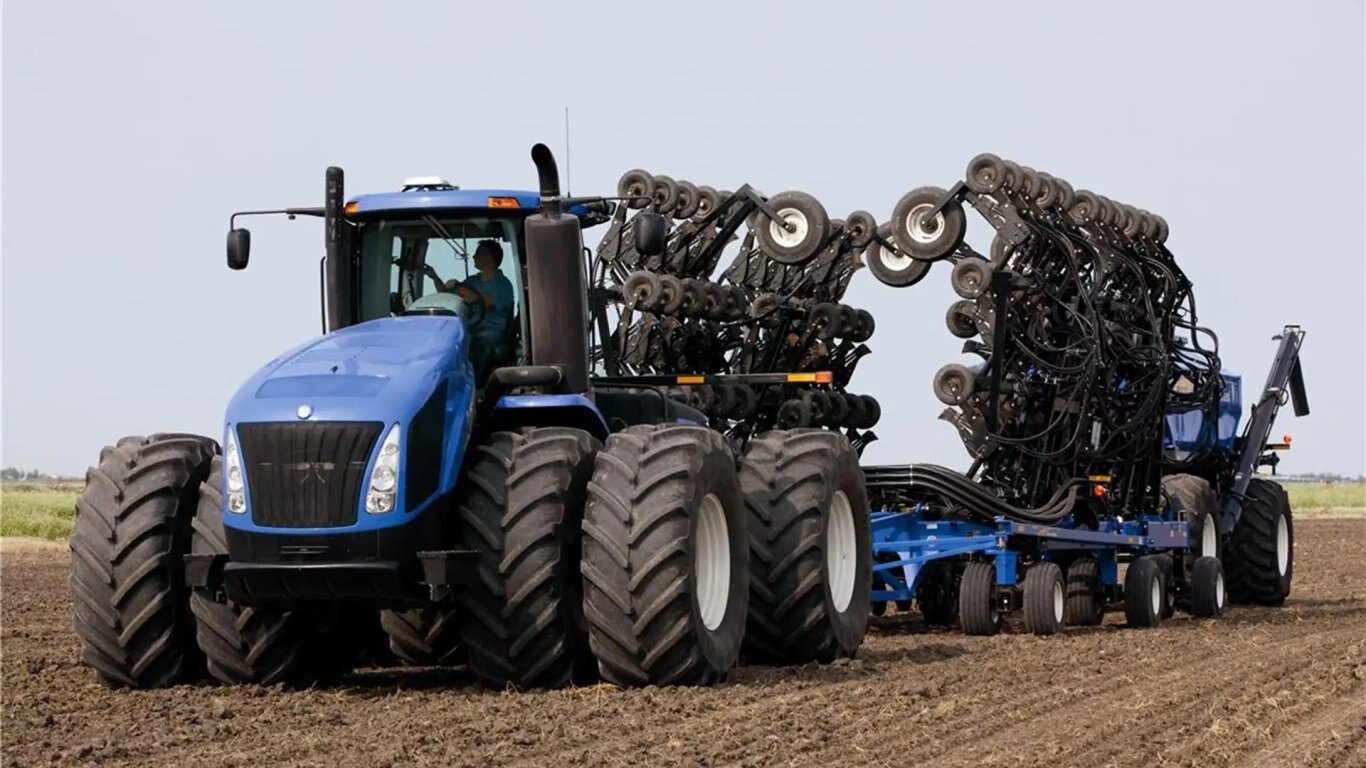

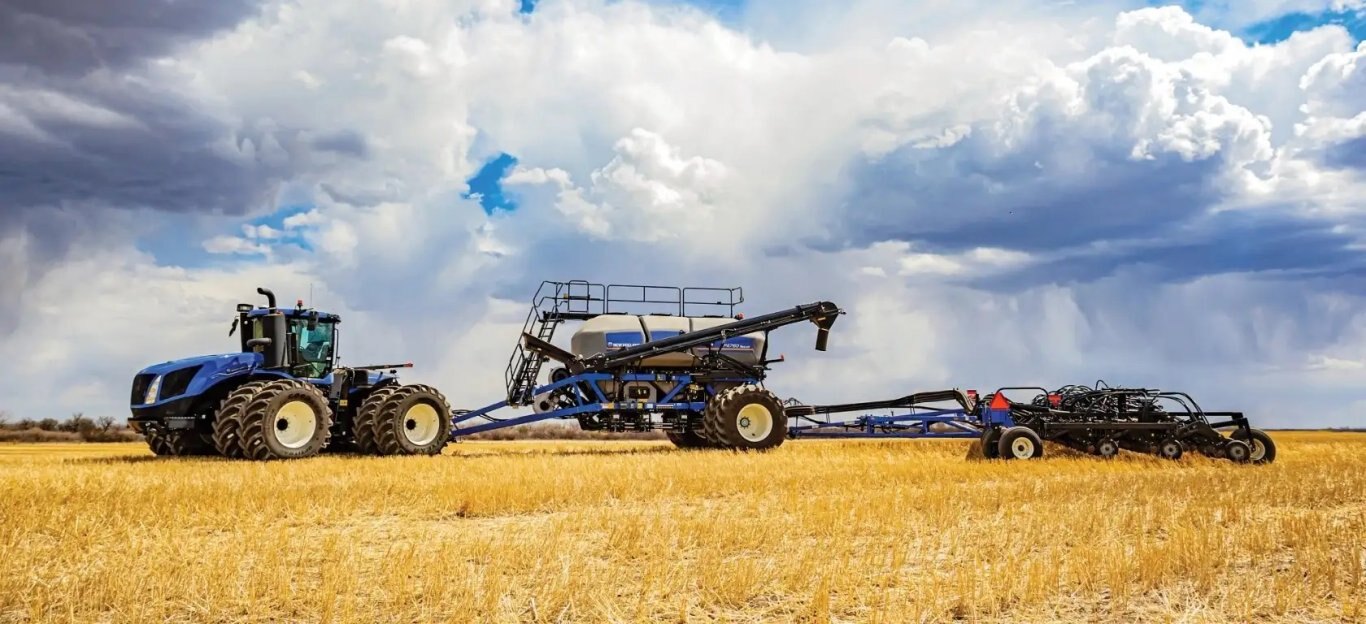

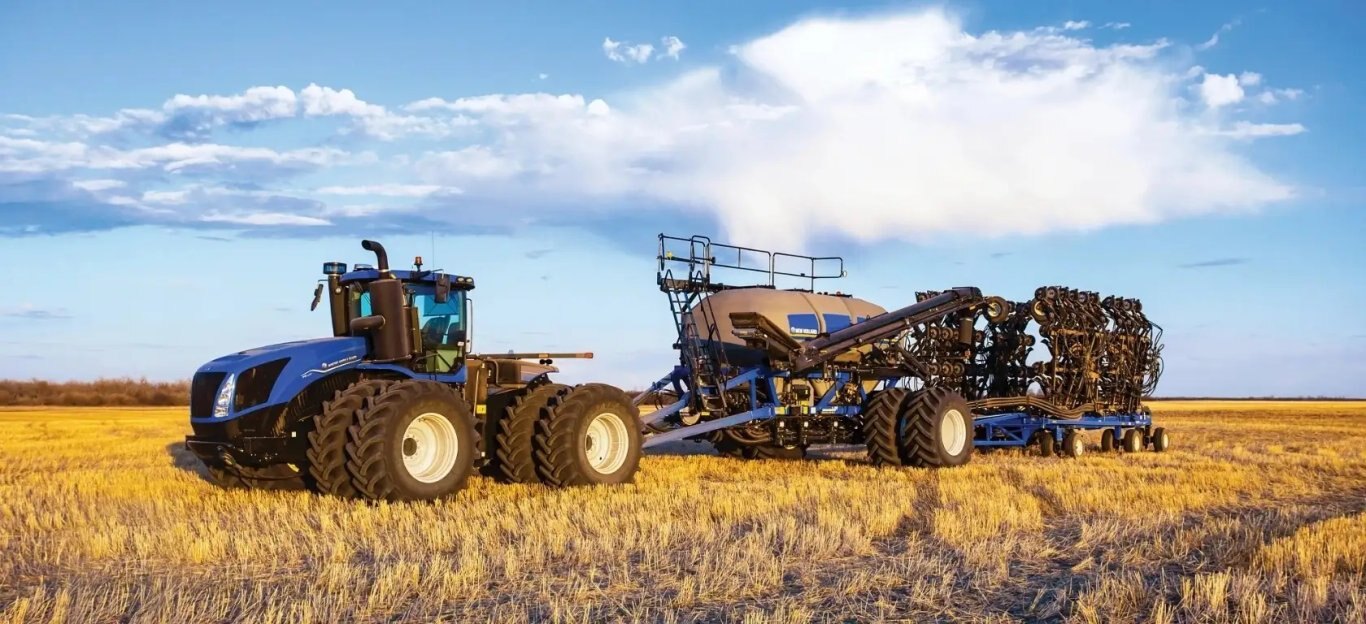

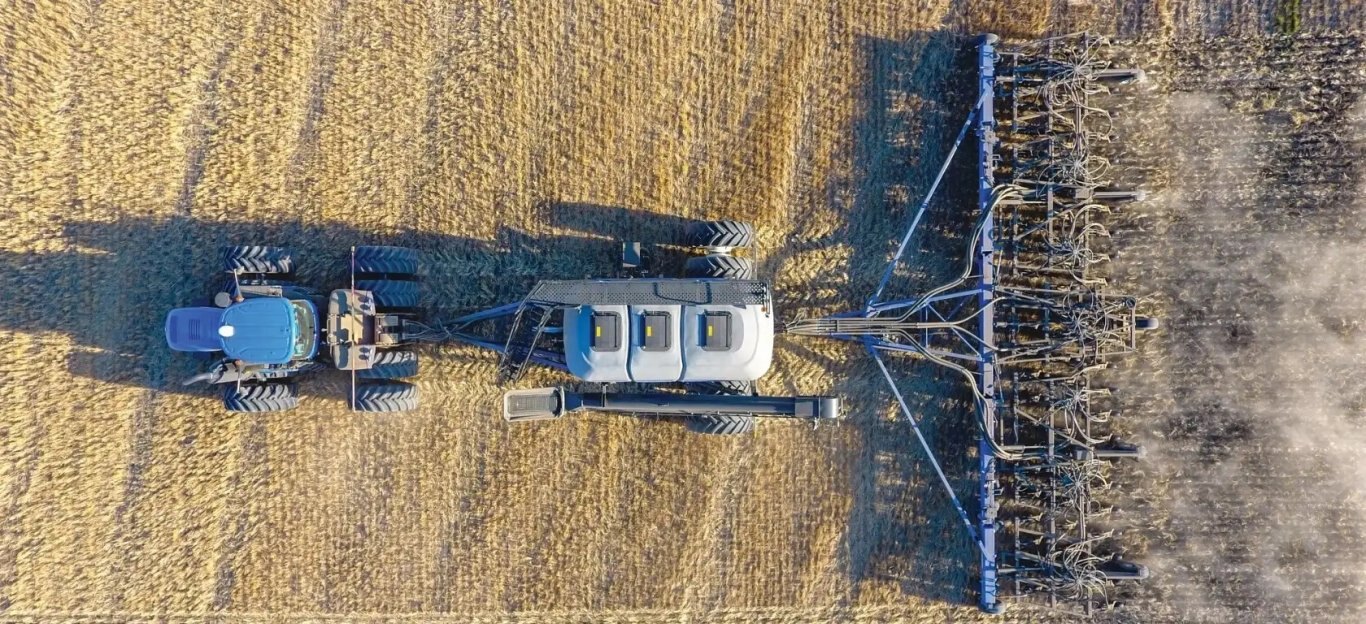

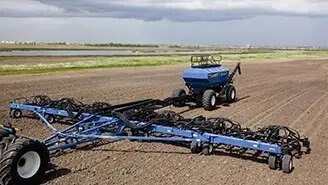

The P2060 air hoe drill delivers simple, precise seed placement in 60 and 70 ft. (18.3 and 21.3 m) widths for increased productivity. Transportation & storage are easier than ever with the innovative fold-back design.

OPENERS TO MATCH CONDITIONS

A wide array of Stealth™ openers for single-shoot, double-shoot, side-band, and paired row options are available for the P2050 and P2060 air hoe drills to let you place seed and fertilizer precisely where you choose.

SINGLE-SHOOT

New Holland Stealth™ openers use replaceable tips that work for both narrow-row and spread-row seeding styles. C-shank and edge-on shank openers are also available.

Knife Tips

• Low soil disturbance
• Very narrow spread of 7/8 to one inch (22.2 to 25.4 mm)
• For use with any press wheel
• Heavy-duty, gumbo or carbide tips match soil conditions

Spread Tips

• Designed for low-disturbance seeding
• Wider product spread allows more fertilizer to be placed with the seed
• Spread tips are available in three, four or five-inch sizes (76.2, 101.6 and 127 mm)
• For use with press wheels that match row widths

DOUBLE-SHOOT

Stealth™ double-shoot attachments allow one-pass placement of seed and fertilizer. Seed/fertilizer separation prevents seedling damage. C-shank and edge-on shank openers are also available.

Side Band

• Places the seed one inch (25.4 mm) above and one inch (25.4 mm) beside the fertilizer
• Wing forces soil over the fertilizer trench to provide separation from seed
• Can be used with all press wheels
• Available in standard or long-life carbide

Paired Row

• Seed is placed one inch (25.4 mm) above and one to two-and-a-half inches (25.4 to 63.5 mm) to both sides of the fertilizer
• Three inch (76.2 mm) available in HS format for heavy soils and gumbo, and in LS format for light soils and sandy loam
• Three, four and five-inch (76.2, 101.6 and 127 mm) available in carbide for extended wear to maintain the integrity of seed bed
• Designed to force soil over the fertilizer trench to provide separation from the seed
• For use with press wheels that match row widths

PRECISE SINGLE-POINT DEPTH CONTROL

Single-point depth setting located on the front of the air drill hitch provides simple, exact, repeatable seed depth control across the entire width of the machine. This adjustment allows the operator to quickly and conveniently set precise seeding depths to match a wide range of crop, soil, and moisture conditions.

SUPERIOR GROUND FOLLOWING

The P2060 model includes a flexible frame non-slab that allows each wing and press wheel to follow the contours of the ground independently. The superior ground following capabilities enhances seed placement and accuracy. This flexible design also minimizes frame stress for more durability than traditional welded joints.

CONSISTENT SEED AND FERTILIZER PLACEMENT

Left to right, the P2060 features five independent frame sections. A patented two-paired-rank frame design delivers precise depth accuracy from the front to the rear of the machine. The front two ranks follow the terrain at a depth set by the nearby caster assemblies, and the rear two ranks follow the ground on which the press wheels run. In addition, all tires and packer gangs provide equal weight distribution across the entire width of the drill.

PATENTED ADJUSTABLE PACKING SYSTEM

The exclusive variable packing pressure system raises the bar and allows the operator to tailor packing pressure from field to field for greater efficiency. This versatility allows for accurate fine-tuning in variable soil moisture conditions and for small-seeded crops such as canola.
